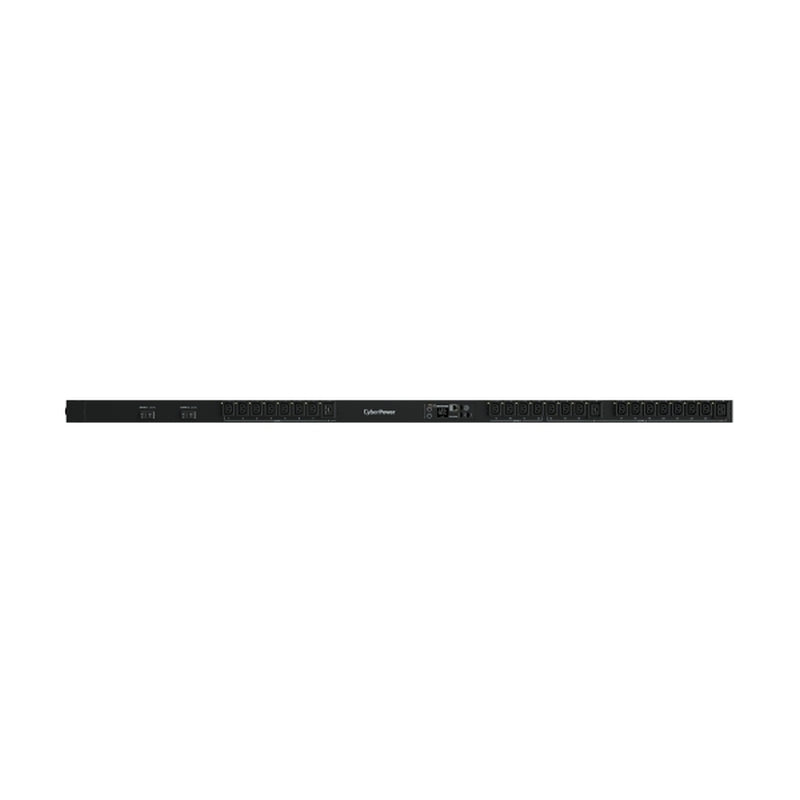

CP Switched ePDU 32Amp

Specifications:

• Phase: Single Phase
• Nominal Input Voltage ( Vac ): 200 - 240
• Input Frequency ( Hz ): 50 / 60
• Maximum Input Current ( A ): 32 (CE)
• Input Connector Type: IEC 60309 32A x 1?
• Power Cord Length: 3.05m
• Output Voltage ( V ): Depends on Input
• Overload Protection: Circuit Breaker
• Over Current Protection (Each Bank) ( A ): 20
• Idle Power Consumption ( W ): < 5
• Outlets - # of Bank(s): 2
• Outlet(s) - Total: 24
• Outlet(s) - Front: 24
• Outlet Type: IEC C13 x 21 | IEC C19 x 3
• Remote Individual Outlet Control: Yes
• LCD Information Display: Input Voltage (Volts) | Input Frequency (Hz) | Current Level (Amps) | Power Consumption (Kilowatts) | Network Information | Serial Number | Environment Status | Hardware Version | Firmware Version
• Hot-swappable LCD Module: Yes
• Auto LCD Orientation: Yes
• LCD Setting & Control: Outlet Control | LCD Settings | Reset / Reboot
• LED Indicators: PDU Status | Tx/Rx | Link | Outlet
• A-type USB Port: Yes
• Connectivity Port: RJ45 | RJ45 (for Serial) | RJ45 (for ENVIROSENSOR/ Daisy Chain (In)) | RJ45 (for Daisy Chain (Out))
• Environmental Sensor Supported: Yes
• User-upgradeable Firmware: Yes
• Power Management Software: PowerPanel Business (Recommended for small-medium scale management) | PowerPanel Enterprise (Recommended for large scale management)
• Supported Protocols: IPv4/v6 | SNMPv1/v3 | HTTP/HTTPs | TCP/IP | UDP | DHCP | NTP | DNS | SMTP | SSH | SSL | TLS | Telnet | FTP | and Syslog
• Authentication: RADIUS | LDAP | LDAPS | Windows AD
• Enclosure Construction: Steel
• Cord Retention Tray: Yes
• IEC Receptacle Locking: Yes
• Adjustable Mounting Brackets: 1 Set
• Dimensions: 56 x 1665 x 48mm
• Weight: 8.0kg
• Certifications: CE | EN 55032 Class A | RoHS
• Warranty: 2 Years

Features:

• Real-time Local/Remote Monitoring and Switching
• Overload Protection
• Ultra Low Power Consumption
• Digital Real-time Load Display
• Hot-swappable LCD Design
• LED Status Indicator
• Support ENVIROSENSOR
• PowerPanel Management Software
• Cord Retention Tray
• Controllable Receptacles with Power Sequencing
• Work under High Temperature
• Industrial-grade Metal Housing
• User Configurable Color LCD
• Rotatable LCD for Proper Display Orientation
• Firmware Upgrade via USB
• User-upgradeable Firmware
• Adjustable Mounting Brackets
• IEC Receptacle Locking

What's in the box?

• 1 x PDU41405
• 1 x User Manual
• 1 x Product Registration Card
• 1 x Cord Retention Tray
• 1 x Mounting Brackets
• 1 x Cable Ties
• 1 x Screw Kit
