CyberPower

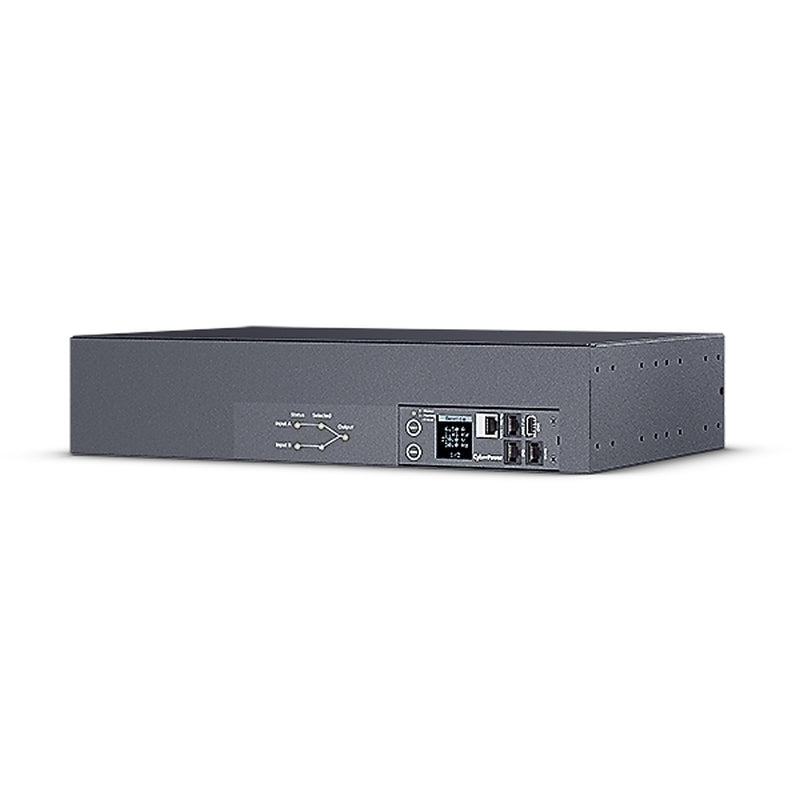

CP Switched ATS 32Amp

CP Switched ATS 32Amp

$1,844.40 AUD
$1,844.40 AUD
Sale Sold out
Tax included.

20 in stock

  • Phase: Single Phase
  • Dual Power Inputs: Yes
  • Nominal Input Voltage ( Vac ): 200 - 240
  • Input Frequency ( Hz ): 50 / 60
  • Maximum Input Current ( A ): 32
  • Input Connector Type: IEC 60309 32A x 2
  • Power Cord Length: 3.05m
  • Output Voltage ( V ): Depends on Input
  • Overload Protection: Circuit Breaker
  • Over Current Protection (Each Bank) ( A ): 20
  • Outlets - # of Bank(s): 2
  • Outlet(s) - Total: 18
  • Outlet(s) - Rear: 18
  • Outlet Type: IEC C19 x 2 | IEC C13 x 16
  • Remote Individual Outlet Control: Yes
  • LCD Information Display: Input Voltage (Volts) | Input Frequency (Hz) | Current Level (Amps) | Power Consumption (Kilowatts) | Network Information | Serial Number | Environment Status | Hardware Version | Firmware Version
  • Hot-swappable LCD Module: Yes
  • LCD Setting & Control: Preferred Source | Source Configuration | Load Configuration | Outlet Control | LCD Settings | Reset / Reboot
  • LED Indicators: PDU Status | Source Status | Load | Tx/Rx | Link | Outlet
  • A-type USB Port: Yes
  • Connectivity Port: RJ45 | RJ45 (for Serial) | RJ45 (for ENVIROSENSOR/ Daisy Chain (In)) | RJ45 (for Daisy Chain (Out))
  • Environmental Sensor Supported: Yes
  • User-upgradeable Firmware: Yes
  • Power Management Software: PowerPanel Business (Recommended for small-medium scale management) | PowerPanel Enterprise (Recommended for large scale management)
  • Supported Protocols: IPv4/v6 | SNMPv1/v3 | HTTP/HTTPs | TCP/IP | UDP | DHCP | NTP | DNS | SMTP | SSH | SSL | TLS | Telnet | FTP | and Syslog
  • Authentication: RADIUS | LDAP | LDAPS | Windows AD
  • Installed Rack Height (U): 2
  • Form Factor: 2U Horizontal Rackmount
  • Enclosure Construction: Steel
  • Cord Retention Tray: Yes
  • IEC Receptacle Locking: Yes
  • External Site Ground Pin: Yes
  • Adjustable Mounting Brackets: 1 Set
  • Dimensions: 433 x 88 x 215mm
  • Weight: 7.8kg
  • Certifications: CE | FCC Class A | UL62368 | EN 55032 Class A | IEC 62368 | RoHS
