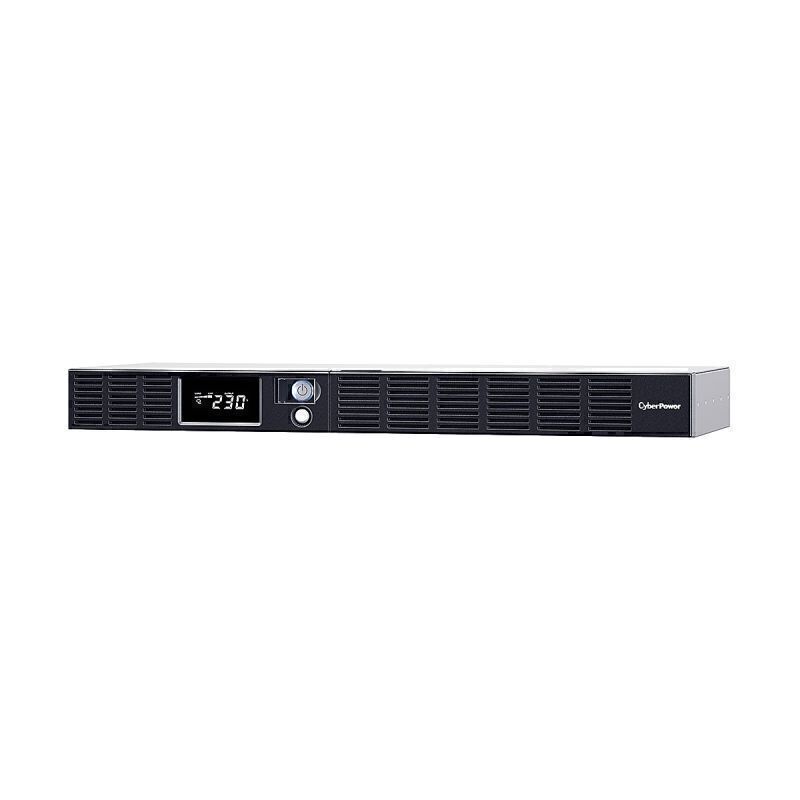

CP Smart App Rack LCD 600VA

Specifications:

• Phase: Single Phase
• Form Factor: Rackmount
• UPS Topology: Line-interactive
• Energy Saving Technology: GreenPower UPS Bypass Technology
• Nominal Input Voltage ( Vac ): 230
• Input Voltage Range ( Vac ): 165 - 271
• Input Frequency ( Hz ): 50 ± 3 | 60 ± 3
• Input Frequency Detection: Auto-sensing
• Rated Input Current ( A ): 10
• Input Connector Type: IEC C14
• Detachable Power Cord Plug Type: IEC C14 x 1
• Power Cord Length (m.): 1.83
• Output Capacity (Watts): 360
• On Battery Waveform: Simulated Sine Wave
• On Battery Voltage(s) ( Vac ): 230 ± 10%
• On Battery Frequency ( Hz ): 50 ± 1% | 60 ± 1%
• Power Factor: 0.6
• Automatic Voltage Regulation (AVR): Single Boost
• Overload Protection: Internal Current Limiting, Circuit Breaker
• Outlet(s) - Total: 6
• Outlet Type: IEC C13 x 6
• Outlet(s) - Battery & Surge Protected: 4
• Outlet(s) - Surge-Only Protected: 2
• Typical Transfer Time ( ms ): 4
• Runtime at Half Load ( min ): 13
• Runtime at Full Load ( min ): 4
• Typical Recharge Time ( Hours ): 8
• Start On Battery: Yes
• User-replaceable: Yes
• Hot-swappable: Yes
• Battery Type: Sealed Lead-acid
• Replacement Battery Pack: RBP0019
• RBP Quantity ( pcs ): 1
• Surge Suppression ( Joules ): 405
• EMI/RFI Filtration: Yes
• Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out
• LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Other Information
• LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output
• HID Compliant USB Port(s): 1
• Serial Port: Dry Contact
• Audible Alarms: Battery Mode, Low Battery, Overload, UPS Fault
• Management Cable ( pcs ): Power Cord x4, USB Cable x1
• Power Management Software: PowerPanel Business (Recommended)
• SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
• Enclosure Construction: Metal
• Rackmount Ears: Yes
• Dimensions: 433 x 44 x 235mm
• Weight: 7.8kg
• Certifications: CE, EAC, RCM

Features:

• Line-interactive UPS Topology
• Simulated Sine Wave Output
• Overload Protection
• Surge and Spike Protection
• Phone/Fax/Modem/DSL/Network Protection
• USB Connectivity Port
• SNMP/HTTP Remote Management Capability (Optional)
• Energy Saving Technology
• Automatic Voltage Regulation (AVR)
• Hot-swappable Batteries
• EMI and RFI Filtration
• LCD Status Display
• PowerPanel Management Software
