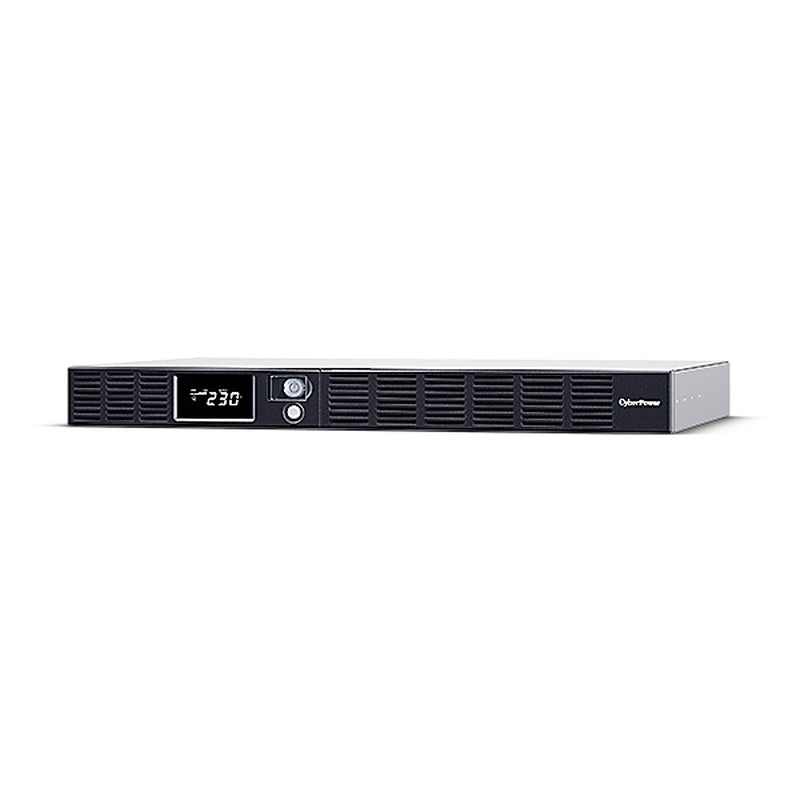

CP Smart App Rack 1500VA UPS

Specifications:

• Phase: Single Phase
• Form Factor: Rackmount
• UPS Topology: Line-interactive
• Energy Saving Technology: GreenPower UPS Bypass Technology
• Nominal Input Voltage ( Vac ): 230
• Input Voltage Range ( Vac ): 165 - 271
• Adjustable Voltage Range ( Vac ): 253 - 271 Vac | 189 - 207 Vac
• Input Frequency ( Hz ): 50 ± 3 | 60 ± 3
• Input Frequency Detection: Auto-sensing
• Input Connector Type: IEC C14
• Detachable Power Cord Plug Type: IEC C14 x 1
• Power Cord Length: 1.83m
• Capacity (VA): 1500
• Capacity (Watts): 900
• On Battery Waveform: Simulated Sine Wave
• On Battery Voltage(s) ( Vac ): 230 ± 10 %
• On Battery Frequency ( Hz ): 50 ± 1% | 60 ± 1%
• Power Factor: 0.6
• Automatic Voltage Regulation (AVR): Single Boost
• Overload Protection: Internal Current Limiting | Circuit Breaker
• Outlet(s) - Total: 6
• Outlet Type: IEC C13 x 6
• Outlet(s) - Battery & Surge Protected: 4
• Outlet(s) - Surge-Only Protected: 2
• Typical Transfer Time ( ms ): 4
• Runtime at Half Load ( min ): 11
• Runtime at Full Load ( min ): 2.5
• Typical Recharge Time ( Hours ): 8
• Start On Battery: Yes
• User-replaceable: Yes
• Hot-swappable: Yes
• Replacement Battery Pack (RBP): RBP0026
• Replacement Battery Pack (RBP) Quantity ( pcs ): 1
• Surge Suppression ( Joules ): 810
• EMI/RFI Filtration: Yes
• Phone/Network Protection RJ11/RJ45 (Combo): 1-in | 1-out
• LCD Information Display: Operation Type | Power Status | Battery Status | Load Status | Other Information
• LCD Setting & Control: Mode Setting | Alarm Setting | Input & Output
• HID Compliant USB Port(s): 1
• Serial Port: Dry Contact
• Audible Alarms: Battery Mode | Low Battery | Overload | UPS Fault
• Management Cable ( pcs ): Power Cord x4 | USB Cable x1
• Power Management Software: PowerPanel Business (Recommended)
• SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
• Enclosure Construction: Metal
• Rackmount Ears: Yes
• Dimensions: 433 x 44 x 389mm
• Weight: 14.9kg
• Installed Rack Height ( U ): 1
• Online Thermal Dissipation ( BTU/hr ): 24
• Certifications: CE | EAC | RCM | RoHS
• Warranty: 2 Years

Features:

• Line-interactive UPS Topology
• Simulated Sine Wave Output
• Overload Protection
• Surge and Spike Protection
• Phone/Fax/Modem/DSL/Network Protection
• USB Connectivity Port
• SNMP/HTTP Remote Management Capability (Optional)
• Energy Saving Technology
• Automatic Voltage Regulation (AVR)
• Hot-swappable Batteries
• EMI and RFI Filtration
• LCD Status Display
• PowerPanel Management Software

What's in the box?

• 1 x OR1500ERM1U UPS
• 1 x Rackmount Ears
• 1 x Power Cord
• 1 x USB Cable
• 1 x User Manual
