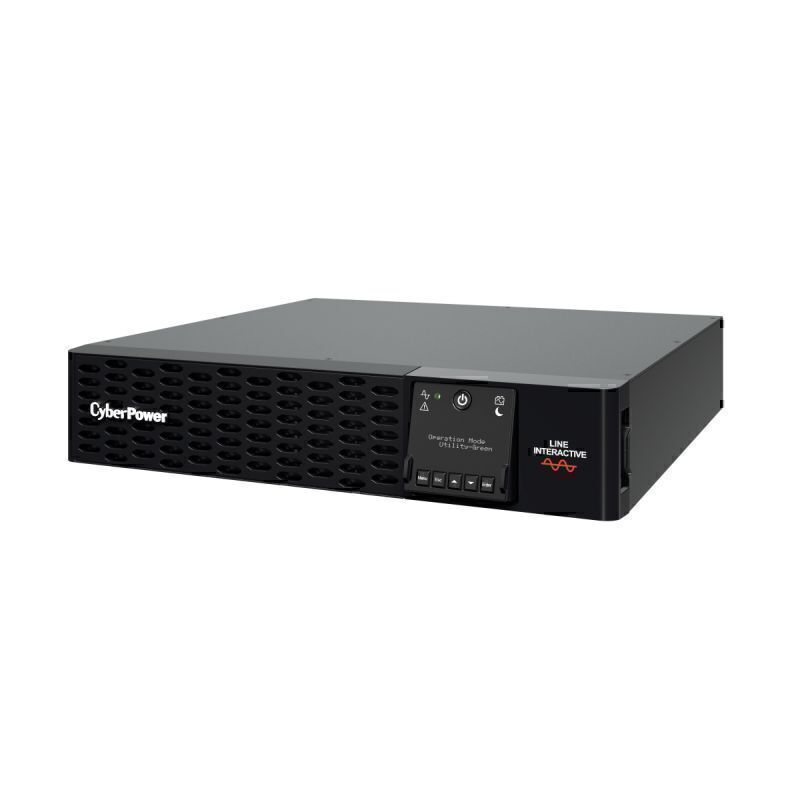

CP PRO Rack/Tower LCD 2000VA

Specifications:

• Phase: Single Phase
• Form Factor: Rackmount, Tower
• UPS Topology: Line-interactive
• Energy Saving Technology: GreenPower UPS Bypass Technology
• Energy Star Qualified: Yes
• Active PFC Compatibility: Yes
• Nominal Input Voltage ( Vac ): 220 | 230 | 240
• Input Voltage Range ( Vac ): 159 - 288
• Adjustable Voltage Range ( Vac ): 151 - 302 Vac
• Input Frequency ( Hz ): 50 ± 3 | 60 ± 3
• Input Frequency Detection: Auto-sensing
• Rated Input Current ( A ): 10
• Input Connector Type: IEC C14
• Power Cord Length (m.): 3
• Output Capacity (Watts): 2000
• On Battery Waveform: Pure Sine Wave
• On Battery Voltage(s) ( Vac ): 220 ± 5% | 230 ± 5% | 240 ± 5%
• On Battery Frequency ( Hz ): 50 ± 1% | 60 ± 1%
• Power Factor: 1
• Automatic Voltage Regulation (AVR): Double Boost, Single Buck
• Overload Protection: Internal Current Limiting, Circuit Breaker
• Outlet(s) - Total: 10
• Outlet Type: IEC C13 x 10
• Outlet(s) - Battery & Surge Protected: 10
• Outlet(s) - Critical Load (CL): 5
• Outlet(s) - Non-Critical Load (NCL): 5
• Typical Transfer Time ( ms ): 4
• Runtime at Half Load ( min ): 12.8
• Runtime at Full Load ( min ): 4
• Typical Recharge Time ( Hours ): 3
• Start On Battery: Yes
• Built-in Battery Management Module: Yes
• User-replaceable: Yes
• Hot-swappable: Yes
• Battery Type: Sealed Lead-acid
• Battery Cartridge: RBP0129
• RBP Quantity ( pcs ): 1
• Battery Quantity (Each RBP) ( pcs ): 4
• Compatible Extended Battery Module (EBM): BP48VP2U02 (Built-in Charger)
• Max. EBM Quantity ( pcs ): Unlimited
• Surge Suppression ( Joules ): 2430
• EMI/RFI Filtration: Yes
• Network Protection RJ45: 1-in, 1-out
• LCD Orientation: Rotatable LCD – Manual
• LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Event & Log
• LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Communication
• HID Compliant USB Port(s): 1
• Dry Contact (with Relay): Yes
• Emergency Power Off (EPO) Port: Yes
• Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault
• Management Cable ( pcs ): Power Cord x3, USB Cable x1, Serial Cable x1, EPO Cable x1, Phone Line x1
• Ethernet Data Transmission Speed: Up to 1Gbps
• Power Management Software: PowerPanel Business (Recommended)
• SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
• PowerPanel Cloud Service: Yes - 90 Days Free Trial
• Enclosure Construction: Metal
• Rackmount Rail: Yes
• Rackmount Ears: Yes
• Dimensions: 433 x 86.5 x 500mm
• Weight: 34.4kg
• Certifications: CE, FCC Class B, UL, cUL, RCM, VCCI, UKCA

Features:

• Line-interactive UPS Topology
• Active PFC Compatible
• Toolless Battery Replacement
• High Output Power Factor
• Overload Protection
• Quick Charging Technology
• Extended Battery Module (EBM)
• EMI and RFI Filtration
• USB Connectivity Port
• Emergency Power Off (EPO) Port
• SNMP/HTTP Remote Management Capability (Optional)
• Energy Saving Technology
• Pure Sine Wave Output
• Battery Management Technology
• Automatic Voltage Regulation (AVR)
• Critical/Non-critical Load Outlets
• Hot-swappable Batteries
• Surge and Spike Protection
• LCD Status Display
• Serial Connectivity Port
• PowerPanel Management Software
• Rack/Tower Convertible Configurations
