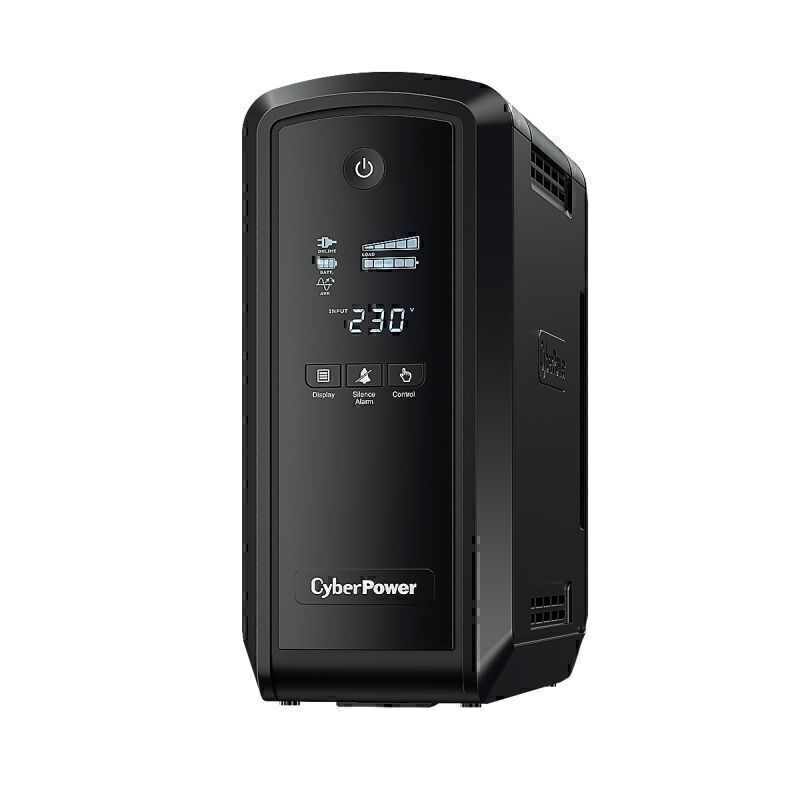

CP PFC Sinewave Series 900VA

Specifications:

• Phase: Single Phase
• Form Factor: Tower
• UPS Topology: Line-interactive
• Energy Saving Technology: GreenPower UPS Bypass Technology
• Active PFC Compatibility: Yes
• Nominal Input Voltage ( Vac ): 230
• Input Voltage Range ( Vac ): 170 - 270
• Input Frequency ( Hz ): 50 ± 3 | 60 ± 3
• Input Frequency Detection: Auto-sensing
• Rated Input Current ( A ): 10
• Input Connector Type: IEC C14
• Power Cord Length (m.): 1.83
• Output Capacity (Watts): 540
• On Battery Waveform: Pure Sine Wave
• On Battery Voltage(s) ( Vac ): 230 ± 10%
• On Battery Frequency ( Hz ): 50 ± 1% | 60 ± 1%
• Automatic Voltage Regulation (AVR): Single Boost
• Overload Protection: Internal Current Limiting, Circuit Breaker
• Outlet(s) - Total: 6
• Outlet(s) - Battery & Surge Protected: 3
• Outlet(s) - Surge-Only Protected: 3
• Typical Transfer Time ( ms ): 4
• Runtime at Half Load ( min ): 7
• Runtime at Full Load ( min ): 1
• Typical Recharge Time ( Hours ): 8
• Battery Type: Sealed Lead-acid
• Battery Cartridge: RBP0051
• RBP Quantity ( pcs ): 1
• Surge Suppression ( Joules ): 405
• EMI/RFI Filtration: Yes
• Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out
• LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
• LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Event & Log
• HID Compliant USB Port(s): 1
• Audible Alarms: Battery Mode, Low Battery, Overload, UPS Fault
• Management Cable ( pcs ): Power Cord x2, USB Cable x1
• Ethernet Data Transmission Speed: Up to 1Gbps
• Power Management Software: PowerPanel Personal (Recommended)
• Enclosure Construction: Plastic
• Dimensions: 100 x 230 x 275mm
• Weight: 7.1kg
• Certifications: CE, EAC, RCM

Features:

• ine-interactive UPS Topology
• Active PFC Compatible
• Automatic Voltage Regulation (AVR)
• LED Status Indicator
• Surge and Spike Protection
• Tower Form Factor
• Energy Saving Technology
• Pure Sine Wave Output
• LCD Status Display
• PowerPanel Management Software
• Phone/Fax/Modem/DSL/Network Protection
