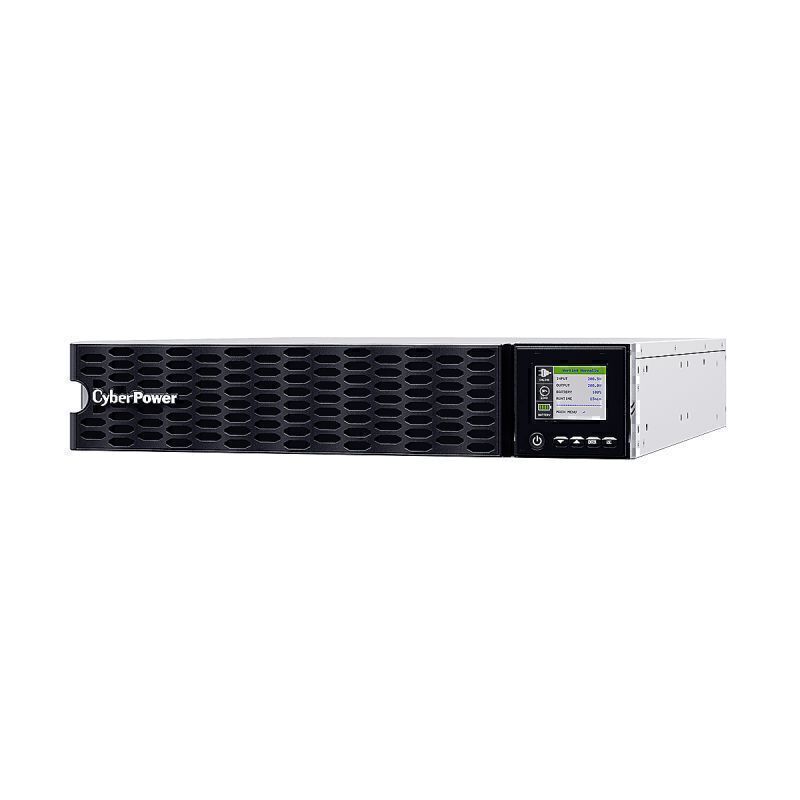

CP 6000VA/W Rack Tower UPS

Specifications:

• Phase: Single Phase
• Form Factor: Rackmount, Tower
• UPS Topology: Online Double Conversion
• Energy Saving Technology: Online ECO Mode Efficiency > 97%
• Active PFC Compatibility: Yes
• Generator Compatibility: Yes
• Nominal Input Voltage ( Vac ): 200 ± 2% | 208 ± 2% | 220 ± 2% | 230 ± 2% | 240 ± 2%
• Input Voltage Range ( Vac ): 200 - 240
• Adjustable Voltage Range ( Vac ): 0-25% Load for 120 - 139 Vac | 0-50% Load for 140 - 159 Vac | 0-75% Load for 160 - 179 Vac | 0-100% Load for 180 - 280 Vac
• Input Frequency ( Hz ): 50 ± 10 | 60 ± 10
• Input Frequency Detection: Auto-sensing
• Rated Input Current ( A ): 32
• Input Power Factor: 0.99
• Input Connector Type: Hardwire Terminal Block
• Output Capacity (Watts): 6000
• On Battery Waveform: Pure Sine Wave
• On Battery Voltage(s) ( Vac ): 200 ± 2% | 208 ± 2% | 220 ± 2% | 230 ± 2% | 240 ± 2%
• Output Voltage Setting: Configurable
• On Battery Frequency ( Hz ): 50 ± 0.5% | 60 ± 0.5%
• Output Frequency Setting: Configurable
• Power Factor: 1
• ECO Mode Voltage Tolerance: ± 10 % | ± 15 %
• Overload Protection: Internal Current Limiting, Circuit Breaker
• Overload Protection (Line Mode): 105-125% Load for 1 min, 125-150% Load for 10 sec
• Overload Protection (Battery Mode): 105-130% Load for 10 sec, 130-150% Load for 2 sec
• Overload Protection (Bypass Mode): Circuit Breaker
• Crest Factor: 3 : 1
• Harmonic Distortion (Linear Load): THD?3%
• Harmonic Distortion (Non-linear Load): THD?5%
• Internal Bypass: Automatic Bypass, Manual Bypass
• Outlet(s) - Total: 7
• Outlet Type: IEC C13 x 4 | IEC C19 x 2 | Hardwire Terminal Block x 1
• Outlet(s) - Battery & Surge Protected: 7
• Outlet(s) - Critical Load (CL): 4
• Outlet(s) - Non-Critical Load (NCL): 3
• Typical Transfer Time ( ms ): 0
• Runtime at Half Load ( min ): 4.9
• Runtime at Full Load ( min ): 1.4
• Typical Recharge Time ( Hours ): 4
• Start On Battery: Yes
• Smart Battery Management (SBM): Yes
• Built-in Battery Management Module: Yes
• User-replaceable: Yes - Qualified Personnel Only
• Hot-swappable: Yes
• Battery Type: Sealed Lead-acid
• Replacement Battery Pack: RBP0144
• RBP Quantity ( pcs ): 1
• Battery Quantity (Each RBP) ( pcs ): 12
• Battery Voltage (Each RBP) ( V ): 144
• Compatible Extended Battery Module (EBM): BPE144VL2U01 (Built-in Charger)
• Max. EBM Quantity ( pcs ): 10
• Surge Suppression ( Joules ): 2430
• EMI/RFI Filtration: Yes
• LCD Orientation: Rotatable LCD – Automatic, Rotatable LCD – via Setting
• Tiltable LCD Panel: 18°
• LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
• LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Communication, Event & Log, Security Setting, Language
• HID Compliant USB Port(s): 1
• Emergency Power Off (EPO) Port: Yes
• Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery
• Management Cable ( pcs ): USB Cable x1, Serial Cable x1
• Power Management Software: PowerPanel Business (Recommended)
• SNMP/HTTP Remote Monitoring: Yes - RMCARD205 included
• Enclosure Construction: Metal
• Rackmount Rail: Yes
• Rackmount Ears: Yes
• Dimensions: 433 x 86.5 x 720mm
• Rack-mounted Dimensions: 433 x 86.5 x 685mm (Without the dimension of front panel)
• Weight: 42kg
• Certifications: CE, EAC, RCM

Features:

• Online (Double Conversion) UPS Topology
• High Density Design
• High Output Power Factor
• Tiltable LCD Panel
• Surge and Spike Protection
• Generator Compatible
• Hot-swappable Batteries
• Smart Battery Management (SBM)
• SNMP/HTTP Remote Management Capability
• ECO Mode
• Color LCD Panel
• Quick Charging Technology
• Automatically rotatable LCD
• Critical/Non-critical Load Outlets
• Battery Management Technology
• Extended Battery Module (EBM)
• Emergency Power Off (EPO) Port
• PowerPanel Management Software
