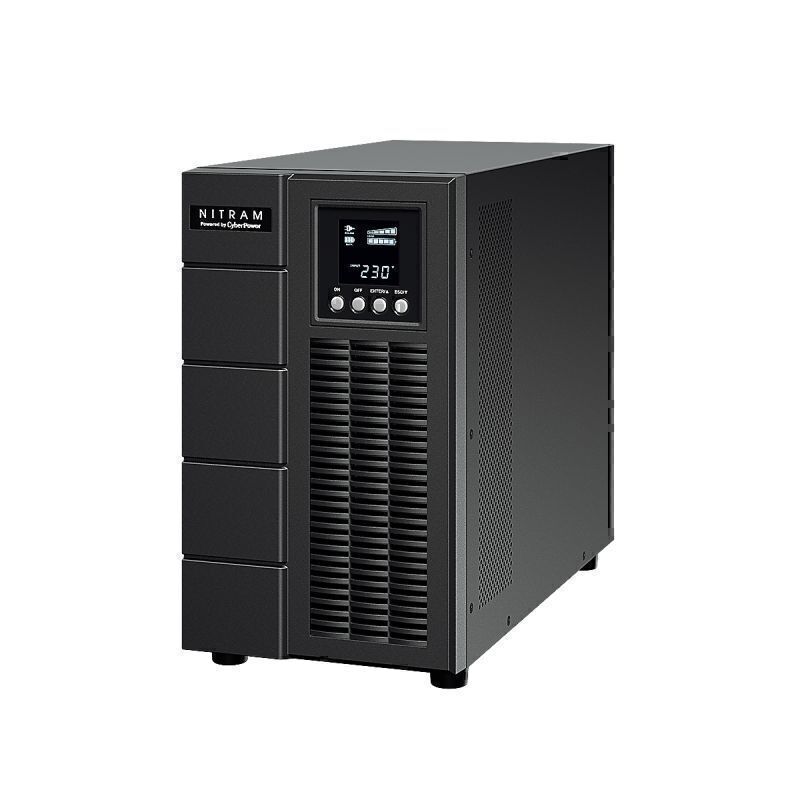

CP 2000VA/1800W Tower UPS

Specifications:

• Phase: Single Phase
• Form Factor: Tower
• 95%
• Active PFC Compatibility: Yes
• Generator Compatibility: Yes
• Nominal Input Voltage ( Vac ): 230 ± 10%
• Input Voltage Range ( Vac ): 160 ~ 300
• Adjustable Voltage Range ( Vac ): 0~50% Load for 110 ~ 300 Vac | 0~60% Load for 120 ~ 300 Vac | 0~80% Load for 140 ~ 300 Vac | 0~100% Load for 160 ~ 300 Vac
• Input Frequency ( Hz ): 50 ± 10 | 60 ± 10
• 120% Load Immediately
• Overload Protection (Battery Mode): 110~120% Load for 10 sec, >120% Load Immediately
• Overload Protection (Bypass Mode): >130% Load Immediately
• Crest Factor: 3 : 1
• Harmonic Distortion (Linear Load): THD?3%
• Harmonic Distortion (Non-linear Load): THD?5%
• Internal Bypass: Automatic Bypass, Manual Bypass
• Outlet(s) - Total: 5
• Outlet Type: Hardwire Terminal Block x 1 | IEC C13 x 4
• Outlet(s) - Battery & Surge Protected: 4
• Typical Transfer Time ( ms ): 0
• Runtime at Half Load ( min ): 15
• Runtime at Full Load ( min ): 5
• Typical Recharge Time ( Hours ): 5
• Maximum Charging Current ( A ): 1
• Start On Battery: Yes
• Smart Battery Management (SBM): Yes
• User-replaceable: No
• Battery Type: Sealed Lead-acid
• Compatible Extended Battery Module (EBM): BPSE72V45A
• Max. EBM Quantity ( pcs ): 3
• Surge Suppression ( Joules ): 440
• EMI/RFI Filtration: Yes
• Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out
• LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
• LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting
• HID Compliant USB Port(s): 1
• Emergency Power Off (EPO) Port: Yes
• Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery
• Management Cable ( pcs ): Power Cord x2, USB Cable x1, Phone Line x1
• Power Management Software: PowerPanel Business (Recommended)
• SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
• Enclosure Construction: Metal
• Dimensions: 196 x 337 x 416mm
• Weight: 23.8kg
• Certifications: CE, RCM

Features:

• Online (Double Conversion) UPS Topology
• Generator Compatible
• Zero Transfer Time
• Extended Battery Module (EBM)
• EMI and RFI Filtration
• LCD Status Display
• PowerPanel Management Software
• ECO Mode
• Overload Protection
• Smart Battery Management (SBM)
• Surge and Spike Protection
• Phone/Fax/Modem/DSL/Network Protection
• Emergency Power Off (EPO) Port
• SNMP/HTTP Remote Management Capability (Optional)
