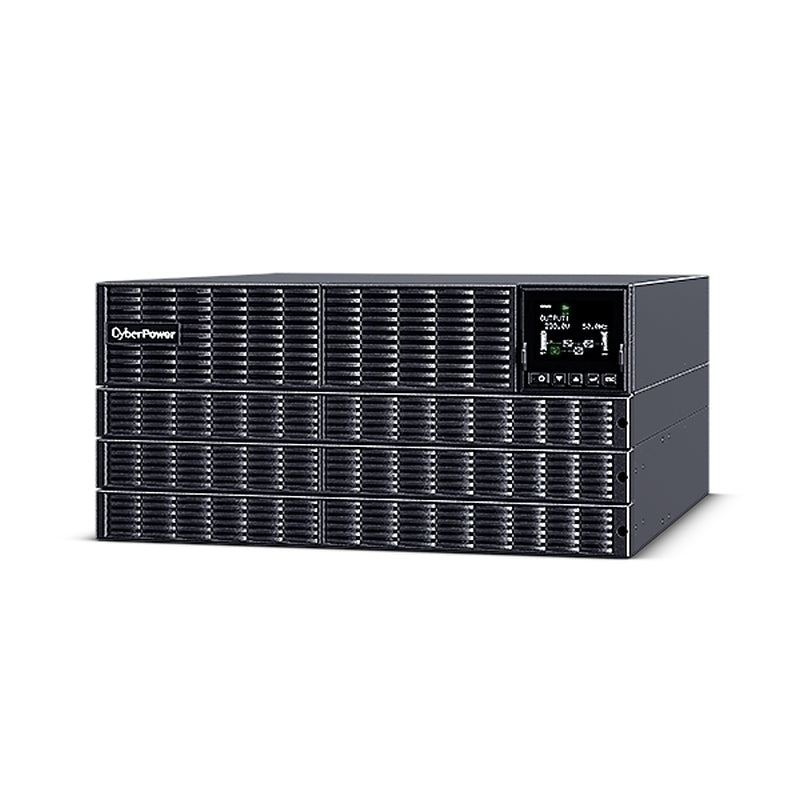

CP 10000VA/10000W Rack UPS

Specifications:

• Phase: Single Phase
• Form Factor: Rackmount / Tower
• UPS Topology: Online Double Conversion
• Energy Saving Technology: Online ECO Mode Efficiency > 98%
• Active PFC Compatibility: Yes
• Generator Compatibility: Yes
• Nominal Input Voltage ( Vac ): 230
• Input Voltage Range ( Vac ): 110 - 300
• Adjustable Voltage Range ( Vac ): 0-50% Load for 110 - 144 Vac | 0-75% Load for 145 - 179 Vac | 0-100% Load for 180 - 300 Vac
• Input Frequency ( Hz ): 50 - 60Hz
• Input Frequency Detection: Auto-sensing
• Rated Input Current ( A ): 49.5
• Input Power Factor: 0.99
• Input Connector Type: Hardwire Terminal Block
• Capacity (VA): 10000
• Capacity (Watts): 10000
• On Battery Waveform: Pure Sine Wave
• On Battery Frequency ( Hz ): 50 ± 0.5% | 60 ± 0.5%
• Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse
• Overload Protection (Line Mode): 105-130% Load for 10 sec, >130% Load for 1.5 sec
• Overload Protection (Battery Mode): 105-130% Load for 10 sec, >130% Load for 1.5 sec
• Overload Protection (Bypass Mode): 110-120% Load for 30 min, 120-130% Load for 2 min, 130-150% Load for 15 sec, >150% Load Immediately
• Harmonic Distortion (Linear Load): THD?1.5%
• Harmonic Distortion (Non-linear Load): THD?3%
• Internal Bypass: Automatic Bypass / Manual Bypass
• Maintenance Bypass: Yes
• Outlet(s) - Total: 9
• Outlet Type: Hardwire Terminal Block x 1 | IEC C13 x 4 | IEC C19 x 4
• Typical Transfer Time ( ms ): 0
• Runtime at Half Load ( min ): 11.2
• Runtime at Full Load ( min ): 2.9
• Typical Recharge Time ( Hours ): 4
• Maximum Charging Current ( A ): 4
• Adjustable Charging Current ( A ): 1 - 4
• Start On Battery: Yes
• Smart Battery Management (SBM): Yes
• User-replaceable: Yes
• Hot-swappable: Yes
• Compatible Extended Battery Module (EBM): BPS240V9ART3U
• Max. EBM Quantity ( pcs ): 10
• Surge Suppression ( Joules ): 1335
• EMI/RFI Filtration: Yes
• LCD Orientation: Rotatable LCD – Manual
• Tiltable LCD Panel: 15 degrees
• HID Compliant USB Port(s): 1
• Serial Port: RS232
• Dry Contact (with Relay): Yes
• Emergency Power Off (EPO) Port: Yes
• Power Management Software: PowerPanel Business (Recommended)
• SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
• Remote Cloud Card: Yes - Built-in Remote Cloud Card by Ethernet included
• Enclosure Construction: Metal
• Rackmount Rail: Yes
• Rackmount Ears: Yes
• Dimensions: 433 x 213.5 x 661mm
• Weight: 80kg
• Installed Rack Height ( U ): 5
• Online Thermal Dissipation ( BTU/hr ): 2047
• Audible Noise at 1.0M from Surface of Unit: 62 dBA
• Certifications: CE / RoHS

Features:

• Online (Double Conversion) UPS Topology
• High Output Power Factor
• Overload Protection
• Maintenance Bypass Switch
• Extended Battery Module Auto-detection
• User-replaceable Batteries
• Tiltable LCD Panel
• Relay-type Dry Contact
• SNMP/HTTP Remote Management Capability (Optional)
• Rack/Tower Convertible Configurations
• ECO Mode
• Pure Sine Wave Output
• Zero Transfer Time
• Extended Battery Module (EBM)
• Adjustable Charging Current
• Color LCD Panel
• Emergency Power Off (EPO) Port
• PowerPanel Management Software
• Built-in Remote Cloud Card by Ethernet

What's in the box?

• 1 x OLS10KERT5U UPS
• 1 x External Maintenance Bypass PDU
• 1 x Rackmount Rail
• 1 x Rackmount Ears
• 1 x Rail Kit
• 1 x Screw Kit
• 1 x Power Cord
• 1 x USB Cable
• 1 x Phone Line
• 1 x User Manual
